MK294A3-D3RC2 Tripod and Head Kit

Made after 2011-03-21
For Serial Number A2619747

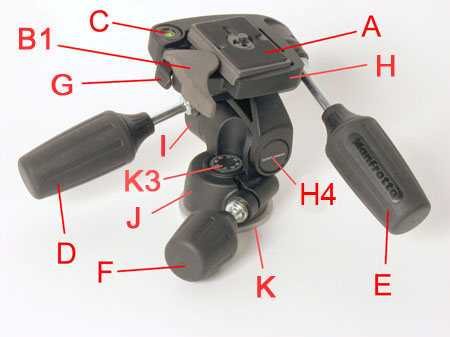

Head Parts

#1304 - A1 Quick Release 1/4-20 Screw
#1313 - A2 Quick Release 3/8 Screw
#1308 - A3 Quick Release 1/4 Anti-Rotate
#1362 - A4 1/4 Thumbscrew
#1360 - A5 3/8 Thumbscrew
#1203 - B QR Cam Assembly (B1, B2, B3)
B1 QR Cam Thumb Lever (not a stock item)
#3664 - B2 QR Cam Return Spring
#1339 - B3 QR Cam Pivot Screw
#4696 - C Side Bubble Level-Single
#5993 - C Side Bubble Level-10 pack
#3793 - D Middle Handle
#3792 - E Top Handle
#2659 - F Bottom Handle

#4435 - G QR Cam Safety Release
#4913 - H1 Top QR Receiver
#4914 - H2 Top Pivot Screw
H3 Side Name Plate (not a stock item)
H4 Other Side Name Plate (not a stock item)
#4916 - I1 Middle Joint Cover
#4915 - I2 Middle Pivot Screw
I3 Middle Name Plate (not a stock item)
#4917 - J Bottom Joint Cover
#4918 - J1Bottom Return Spring
#4915 - J2 Bottom Pivot Joint
J3 Bottom Name Plate (not a stock item)
#4919 - K Base Assmebly (K1, K2)
K1 Base Plate(not a stock item)
K2 Base Pivot(not a stock item)
K3 Base Name Plate(not a stock item)

#4880 - L Handle Set (D, E, F)

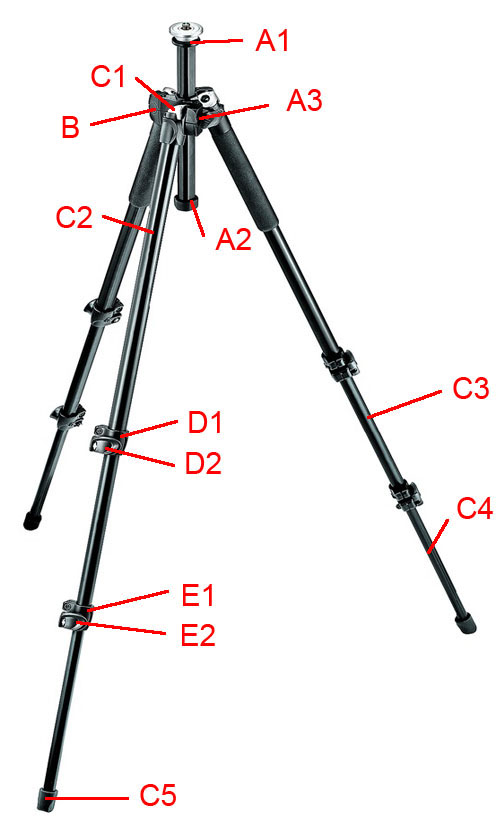

Tripod Parts

#4903 - A1 Center Column
#4132 - A2 Center Column Plug
#4723 - A3 Center Column Lock Knob
#4728 - A4 Sliding Block

#4936 - B Main Casting

#4729 - C1 Leg Extender Release Button
#4899 - C2 Leg Pivot & Top Leg Tube
#4900 - C3 Middle Leg Tube
#4901 - C4 Bottom Leg Tube
#4902 - C5 Rubber Feet (set of 3)

#4727 - D1 Bottom Leg Clamp
#4726 - D2 Bottom Snap Lever

#4725 - E1 Bottom Leg Clamp
#4724 - E2 Bottom Snap Lever

#3147 - F Cable Clip & Wrench
