MM294C4 (4 leg section) Carbon Fiber Monopod Version 2

Made about 2012-12-31
For Serial Number From E0043215

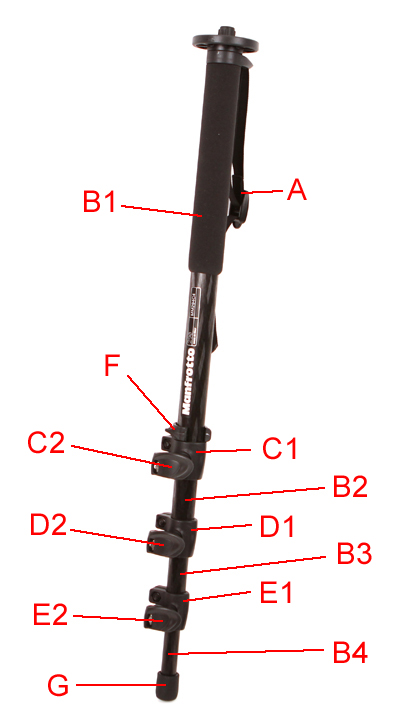

MM294C4 MONOPOD #3136 - Complete MM294C4 Monopod

#171 - A Wrist Strap

B1 Top Tube and Grip Assembly
(not a part)
B2 Upper Tube (not a part)
B3 Middle Tube (not a part)
B4 Bottom Tube (not a part)

#3580 - C1 Top Clamp
#4726 - C2 Top Snap Lever

#3581 - D1 Center Clamp
#4724 - D2 Center Snap Lever

#3584 - E1 Bottom Clamp
#4905 - E2 Bottom Snap Lever

#3147 - F Cable Clip

#2180 - G Rubber Foot

#2183 - H1 Tube Tops
to be mounted on the clamping collars
#2386 - H2 Tube Sleeves
to be mounted on the tubes

Editor note: Parts B are not available individually, only as part
of the complete assembly

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or
is inside in underneath another part and cannot be shown. Click
on the link to see the actual Part picture. Links will turn red on
"mouse-over' and blue after they have been visited.
