MMXPROC5 - 5 Section Carbon Monopod

Made after 2015-10-07

Our parts are for the US models and will have "US" at the end of the model number. After 2016 this model number was changed to the MPMXPROC5

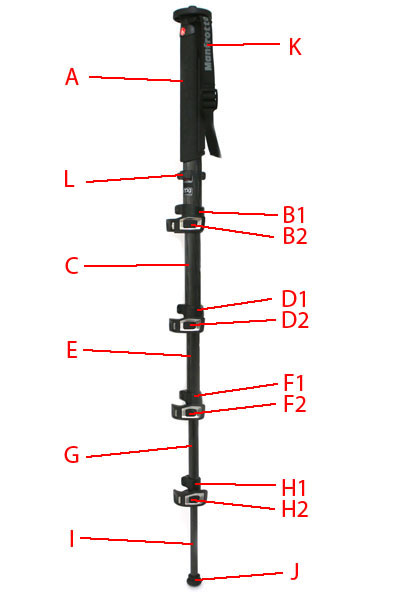

Manfrotto MMXPROC5

#8092 - A Top Tube and Camera Mount

#5205 - B1 Upper Leg Lock
#5206 - B2 Upper Snap Lever

#8089 - C Upper Middle Tube

#5081 - D1 Middle Leg Lock
#5061 - D2 Middle Snap Lever

#8087 - E Lower Middle Tube

#5082 - F1 Middle Leg Lock
#5062 - F2 Middle Snap Lever

#8086 - G Lower Middle Tube

#5083 - H1 Bottom Leg Lock
#5063 - H2 Bottom Snap Lever

#8091 - I Bottom Tube

#8059 - J Rubber Foot (single)

#171 - K Wrist Strap

#3147 - L Cable Clip & Wrench

#204 - M Tube Bushings (set of 4)
to be mounted on tubes

#4680 - N Lock Spacers (set of 4)
to be mounted on clamping collars

Editor note: The replacement parts for the leg locks are NOT interchangeable with the old parts.

Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
