MPMXPROA5 - 5 Section Aluminum Monopod

Made after 2016-10-07


Our parts are for the US models and will have "US" at the end of the model number. This model replaces the MMXPROA5 - all parts are the same.

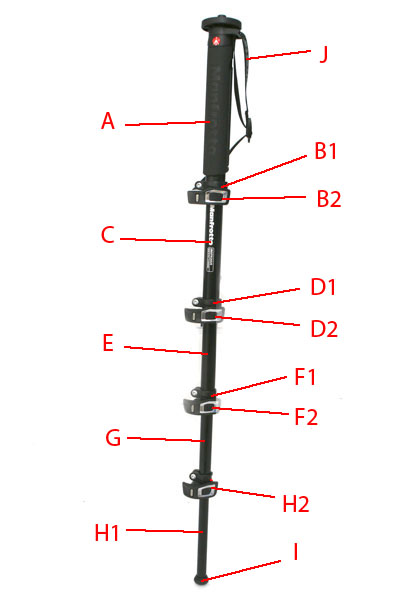

Manfrotto MMXPROA5 monopod

#5614 - MPMXPROA5 Complete Monopod


#8068 - A Top Tube and Camera Mount

#8057 - B1 Upper Leg Lock
#5206 - B2 Upper Snap Lever

#8090 - C Upper Middle Tube

#5058 - D1 Middle Leg Lock
#5061 - D2 Middle Snap Lever

#8071 - E Lower Middle Tube

#5059 - F1 Middle Leg Lock
#5062 - F2 Middle Snap Lever

#8070 - G Lower Middle Tube

#8069 - H1 Bottom Leg Tube and Lock
#5063 - H2 Bottom Snap Lever

#8059 - I Rubber Foot (single)

#171 - J Wrist Strap

#3147 - K Cable Clip & Wrench (not shown)

Editor note: The replacement parts for the leg locks are NOT interchangeable with the old parts.

Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
