MVH502 Video Head
A Bowl Base & AH Flat Base

Made after 2012-07-25
This page shows the parts for both head variations.

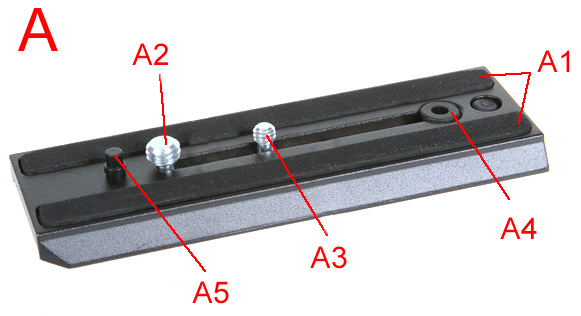

Quick Release Plate for MVH502A & MVH502AH504PLONG QUICK RELEASE PLATE

#4939 - A1 504PLONG QR Plate
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper

Quick Release Variations
#1374 - 500PLONG QR Plate
#1302 - 501PL QR Plate
#1468 - 501PLONG QR Plate
#3676 - 509PLONG QR Plate
MVH502 Common Parts

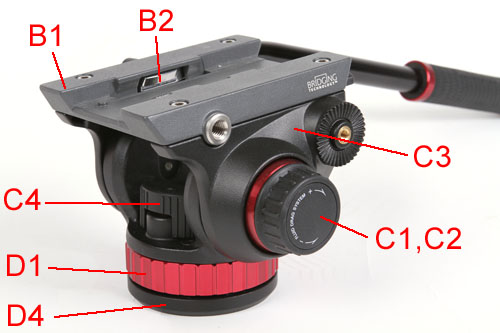

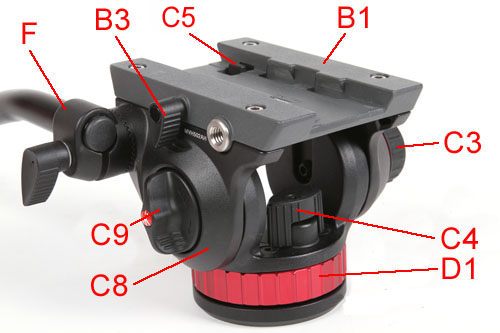

MVH502AMVH502A


#3772 - Buy MVH502A Complete Head w/ Bowl base

#2905 - Buy MVH502AH Complete Head w/ Flat base





#3798 - B1 QR Plate Receiver
#3788 - B2 QR Locking Shoe
#3775 - B3 QR Lock Screw - Single
#8135 - B3 QR Lock Screw - 5 Pack





#4104 - C1 Knob Label (right side) - Single
#8176 - C1 Knob Label - 5 Pack
#4105 - C2 Tilt Tension Knob
#7052 - C3 Left Side & Main Casting
#745 - C4 Pan Tension Knob - Single
#8182 - C4 Pan Tension Knob - 5 Pack
#4103 - C5 Pan Locking Shoe
#7053 - C6 Return Spring
#7051 - C7 Friction Ring (not shown)
#7050 - C8 Right Side Plate
#3862 - C9 Tilt Lock Knob - Single
#8127 - C9 Tilt Lock Knob - 5 Pack
#4696 - C10 Side Bubble Level-Single
#5993 - C10 Side Bubble Level-10 pack






#7054 - D1 Pan Tension Ring
#7055 - D2 Pan Tension Shoe Single
#8185 - D2 Pan Tension Shoe - 10 Pack

D3 502A Base Plate with Bowl (not a stock item)

#7056 - D4 502AH Base Plate - No Bowl - Flat Bottom





E 502A Ball Tension Knob (not a stock item)







#4951 - F 502HLV Pan Bar Assembly
Replaced by 509HLV


#1280 - F1 Clamp
#3603 - F2 Clamp Knob
#3617 - F3 Pan Bar

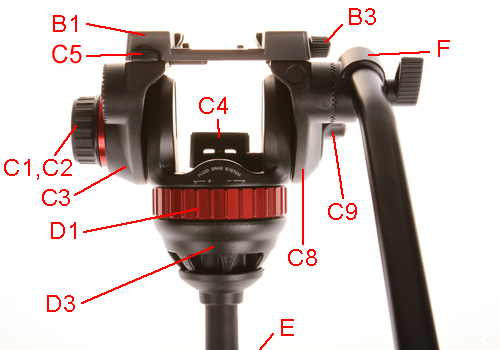

MVH502A With Bowl Base
MVH502A Head Diagram

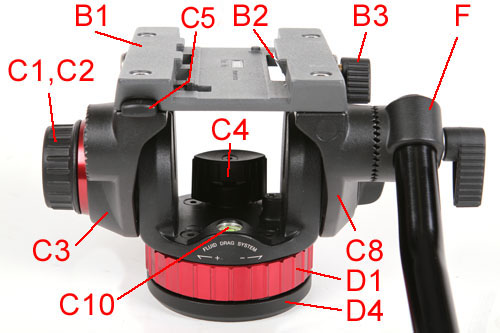

MVH502AH With Flat Bottom Base

MVH502A

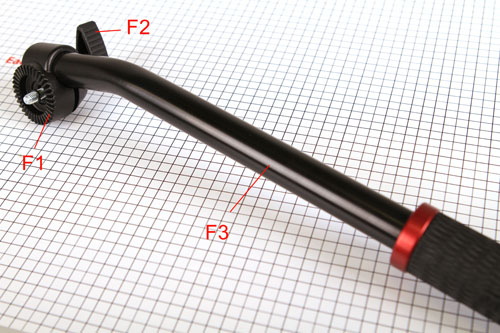

502HLV Pan Bar
Editor note: All parts are interchangeable EXCEPT for D3, D4 and E

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
