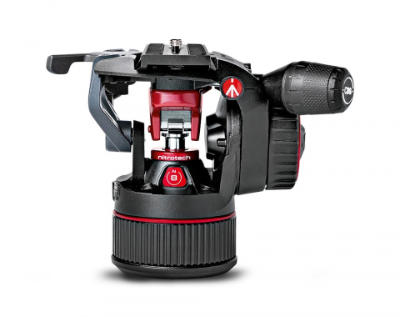

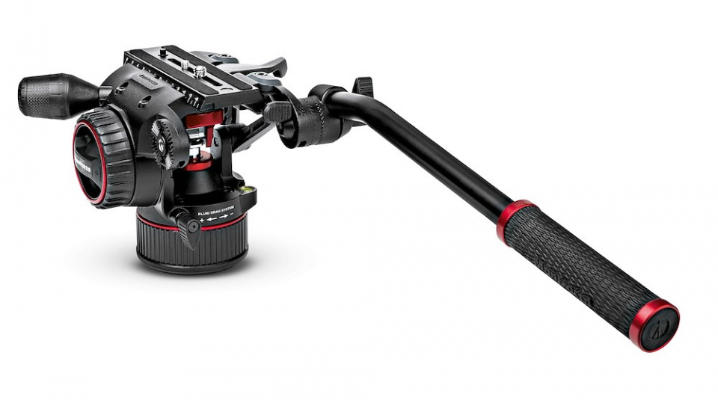

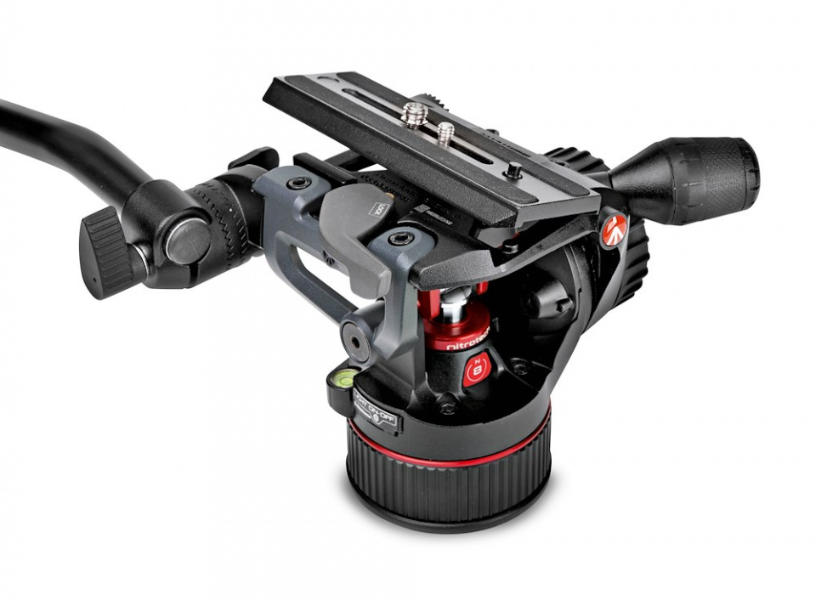

MVHN8AH Nitro Video Head version 1
with Flat Base
Made after 2017-12-07
Quick Release Plate
-
A1 504PLONGRL QR Plate
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A1 Rubber Pads (set of 2)
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A5 Anti-Rotation Pin
B1 Top Plate ***This part should Only be managed and replaced by Authorized Manfrotto Service Center
B2 (set of 10) B3 QR Lever Safety Pin
B4 QR Thumber Lever Release
B5 QR Safety Latch
B6 (set of 5)
B7 Left Side Pan Bar Clamp Spacer
B8 Pan Bar Spacer Screws
C1 Tension Assembly ***This part should Only be managed and replaced by Authorized Manfrotto Service Center
C2 Tension Cylindar ***This part should Only be managed and replaced by Authorized Manfrotto Service Center
C3 Main Casting ***This part should Only be managed and replaced by Authorized Manfrotto Service CenteR
C4 Label
C5 Side Bubble Level-Single
C5 Side Bubble Level-10 pack
C6 ***This part should Only be managed and replaced by Authorized Manfrotto Service Center
C7 Battery Holder
C8 Tension Wheel
C9 Tension Dial
C10 Label (set of 10)
D1
D2
D3
D4
D5
E Pan Arm Assembly
Editor note: The following parts are not user changable and must be sent back to Manfrotto US for repair.
