MH055M0-Q5 Ball Head

Made about 2011-05-03
For Serial Number C0000001

A1 501PL Quick Release Plate
A2 501PL Rubber Pads (set of 2)
A3 1/4 QR Replacment Screw
A4 3/8 QR Replacement Screw
A5 QR Top Plate Assembly (not a stock item)
A6 QR Guide (not a stock item)
A7 QR Safety Pin
A8 QR Lock Wedge
A9 QR Lock Knob
A10 Bubble Level (uses 2 bubbles)


B1 Main Casting
B2 Friction Ring (not shown)
B3 Ball
B4 Plastic Ball Seat and Washers
B5 Bevel Washer
B6 Ball Seat
B7 Friction Assembly
B8 Base (not a stock item)
B9 Bearing (6 pieces)
B10 Retaining Pin
B11 Bullet Catch

B4-B11 Base and Ball Parts are not shown since they are all mostly internal.

C Pan Rotation Lock Knob

D Ball Control Lock Knob

F Ball Tilt Limiter

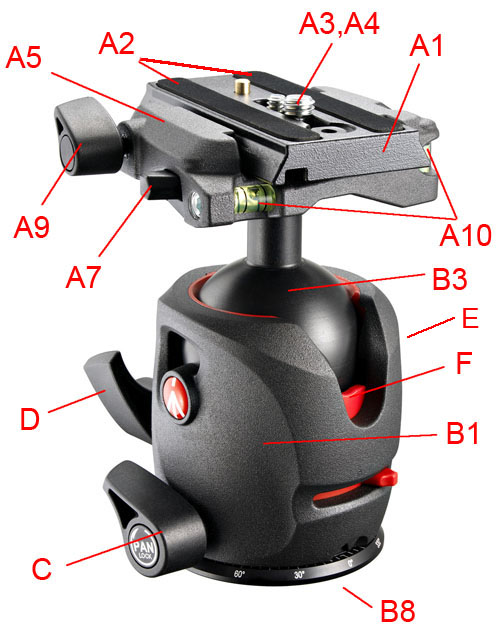

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
