MH054M0 Ball Head

Made about 2011-05-03
For Serial Number C0000001

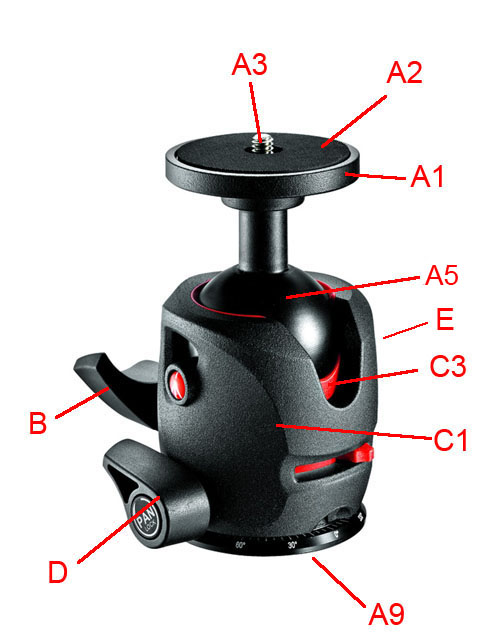

#4527 - MH054M0 Ball Head Assembly

A1 Top Plate (not stock items)
A2 Top Plate Rubber Pad (not stock items)
A3 Camera Screw (not stock items)
#3428 - A4 1/4 to 3/8 Screw Adapter (not shown)

#5029 - A5 Ball
#5031 - A6 Bevel Washer
#5032 - A7 Ball Seat
#5034 - A8 Friction Assembly
#5030 - A9 Plastic Ball Seat and Washers
#5033 - A10 Retaining Pin
#5035 - A11 Bearing (6 pieces)
#5037 - A12 Bullet Catch

A6-A11 Base and Ball Parts are not shown since they are all mostly internal.

#4715 - B Ball Control Lock Knob

#5025 - C1 Main Casting
#5027 - C2 Friction Ring (not shown)
#5036 - C3 Ball Tilt Limiter

#4712 - D Pan Rotation Lock Knob

#4713 - E1 Pan Tension Knob (not shown)
#5024 - E2 Pan Tension Shaft (not shown)

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
