MH055M8-Q5 Combination Head

Made about 2010-08-30
For Serial Number xxxxxx

  #4524 - Complete Head Assembly

#1361 - A1 Quick Release 1/4-20 Screw
#1435 - A2 1/4 Thumbscrew
#1434 - A3 3/8 Thumbscrew
#3665 - A4 Bubble Level (uses 2 bubbles)
A5 Thumb Lever (not a stock item)
A6 Top Plate Assembly (not a stock item)
#1193 - A7 QR Safety Pin
#1191 - A8 Thumbscrew Pivot and Nut

B1 Main Casting (not a stock item)
B3 Ball (not a stock item)
B8 Base (not a stock item)

#4712 - C Pan Rotation Lock Knob

#4715 - D Ball Control Lock Knob

#4713 - E1 Pan Tension Knob
E2 Pan Tension Shaft (not a stock item)

F Ball Tilt Limiter (not a stock item)

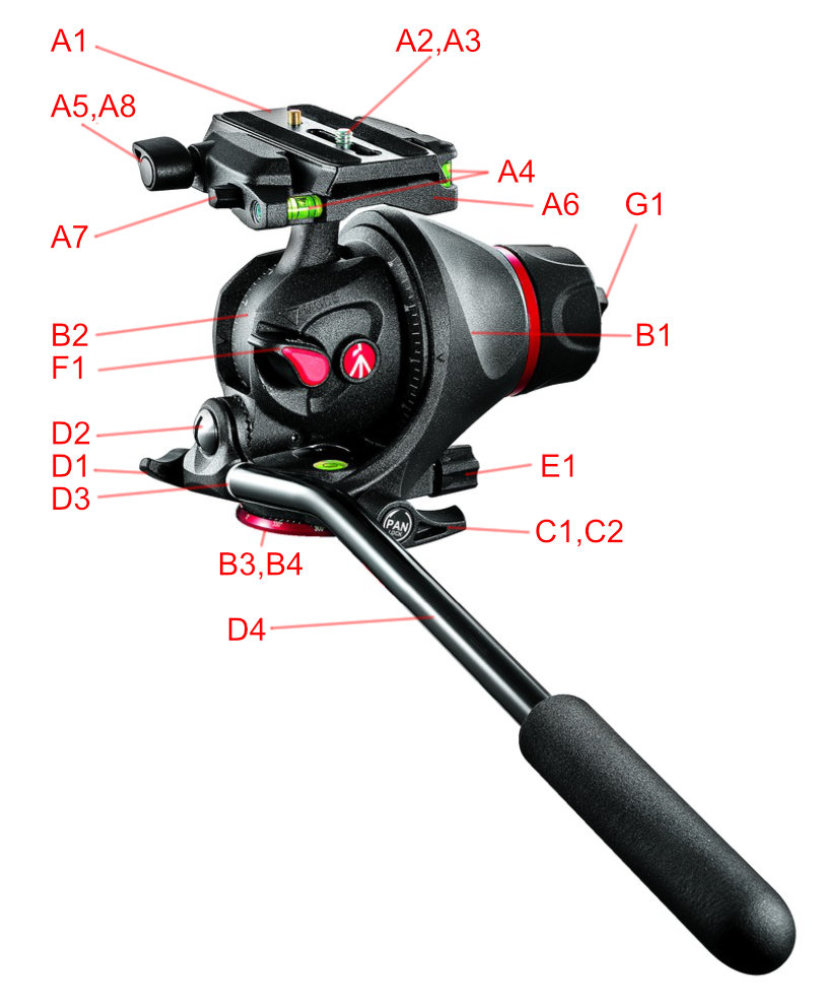

Editor note: Item numbers listed in the index on the right column may not
