MH293D3-Q2 version 1 - 3 Way Pan Head

Made after 2012-09-12
From Serial Number T046487

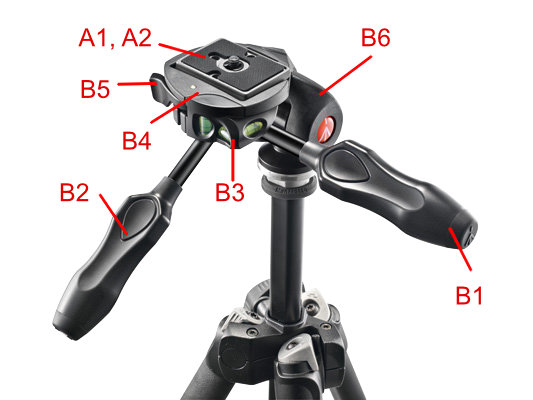

MANFROTTO MH293D3-Q2 TRIPOD HEAD

#1304 - A1 Quick Release 1/4-20 Screw
#1313 - A2 Quick Release 3/8 Screw
#1308 - A3 Quick Release 1/4 Anti-Rotate
#1536 - A4 Quick Release 3/8 Anti-Rotate
#1362 - A5 1/4 Thumbscrew
#1360 - A6 3/8 Thumbscrew

#5387 - B1 Upper handle
#5388 - B2 Lower Handle

B3 Bubble Assy (not a stock item)
#5389 - B4 QR Plate Receiver Assembly
#5390 - B5 QR Safety Catch
B6 Main Body
B7 Catch (not a stock item)
B8 Bezel (not a stock item)

















Editor note:

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
Click on the link to see the actual Part picture. Links will turn
red on "mouse-over' and blue after they have been visited.
