MHXPRO-BHQ6 -Ball Head with Q6 release

Made after 2015-0430
For Serial Number from F0320001

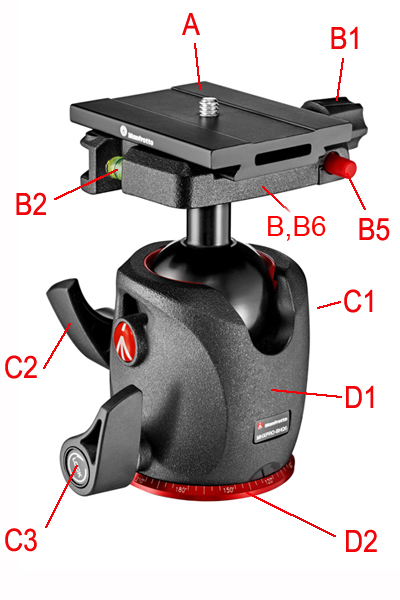

Manfrotto MHXPRO-BHQ6



Buy MHXPRO-BHQ6 Complete Head

A1 Quick Release Plate

B QR Plate Receiver Assembly
B1 QR Lock Knob
B2 Bubble Level
B3 QR Receiver (not a stock item)
B4 QR Plate Adapter(not a stock item)
B5 QR Release Button(not a stock item)
B5 QR Lock Shoe (not a stock item)
B6 QR Receiver to Ball Screw

C1 Short Lock Knob
C2 Long Lock Knob
C3 Bottom Lock Knob(not a stock item)

D1 Main Body Assembly with Ball
(not a stock item)
D2 Base (not a stock item)










Editor note:

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is
inside in underneath another part and cannot be shown.
