MHXPRO-3WG - 3 Way Geared Head

Made after 2015-02-03
For Serial Number from 0000001

Manfrotto MHXPRO3WG



Buy MHXPRO-3W Complete Head

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew


B1 QR Plate & Main Assembly
B2 QR Thumb Lever
B3 QR Safety Catch-Single
B3 QR Safety Catch-3 Pack
B4 Side Bubble Level-Single
B4 Side Bubble Level-10 pack

B5 Elevation / Tilt Handle

C1 Tilt Assembly (not a stock item)
C2 Bubble Level
C3 Gear Handle Sleeves (not a stock item)
C4 Elevation / Tilt Handle

D1 Pan Casting (not a stock item)
D2 Bubble Level
D3 Pan Handle (not a stock item)

E Base plate (not a stock item)

F1 QR Platform Gear Assembly (not a stock item)
F2 Tilt Gear Assembly (not a stock item)
F3 Pan Gear Assembly (not a stock item)

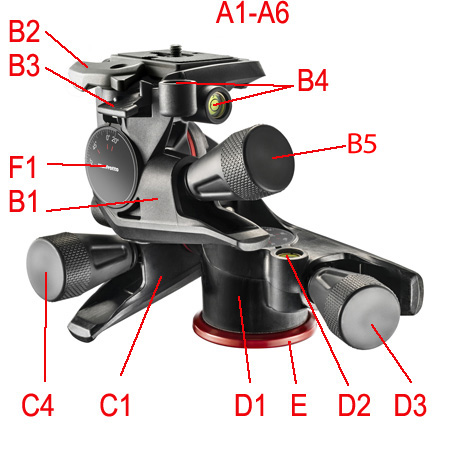

Editor note:

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
Click on the link to see the actual Part picture. Links will turn
red on "mouse-over' and blue after they have been visited.
