MT055CXPRO3 -Carbon Fiber Tripod

Made after 2014-02-07

MT055CXPRO3 Carbon Fiber Tripod

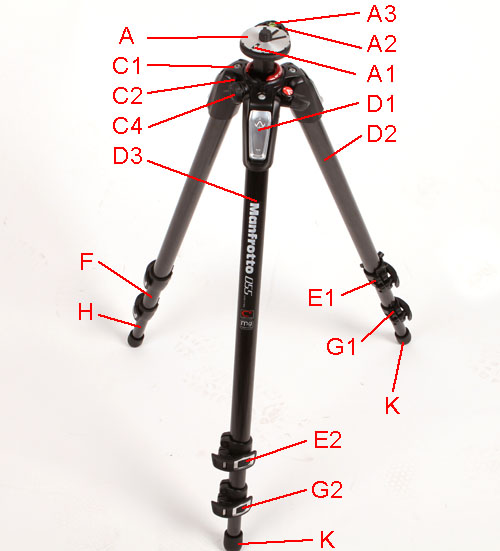

MT055CXPRO3 Tripod Assembly

A Center Column Assy
A 055XSCC Short Center Column
A1 Grub Screw
A2 Top Bezel Ring
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate (not a stock item)
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Plug
C5 Accy Nut

D1 Leg Pivot Release
D2 Tube Without Endgravings
D3 Tube with Endgravings

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button

F Upper Middle Leg Tube

G1 Upper Leg Lock Assy
G2 Upper Snap Lever

H Lower Middle Leg Tube

I (not a part)
J (not a part)

K Rubber Foot (set of 3)

L Cable Clip

M Sleeves

N Leg Bushings



Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
