MT055CXPRO4 -Carbon Fiber Tripod

Made after 2014-02-07

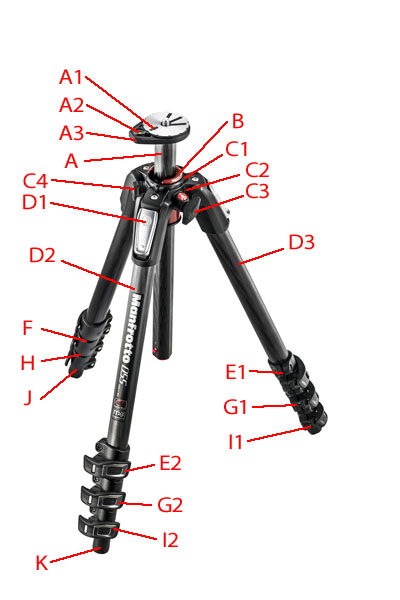

Manfrotto MT055CXPRO4 carbon fiber tripod

A Center Column Assy
A 055XSCC Short Center Column
A1 Grub Screw
A2 Top Bezel Ring
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate (not a stock item)
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Plug
C5 Accy Nut

D1 Leg Pivot Release
D2 Tube Without Endgravings
D3 Tube with Endgravings

E1 Upper Leg Lock Assy
E2 Upper Snap Lever

F Upper Middle Leg Tube

G1 Middle Leg Lock Assy
G2 Middle Snap Lever

H Lower Middle Leg Tube

I1 Lower Leg Lock Assy
I2 Lower Snap Lever

J Lower Leg Tube

K Rubber Foot (set of 3)

L Cable Clip

M Sleeves
(to be mounted on tubes)


N Leg Bushings
(to be mounted on locking collars)



Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
