MT057C3 -Carbon Fiber Video Tripod

Made after 2010-01-06

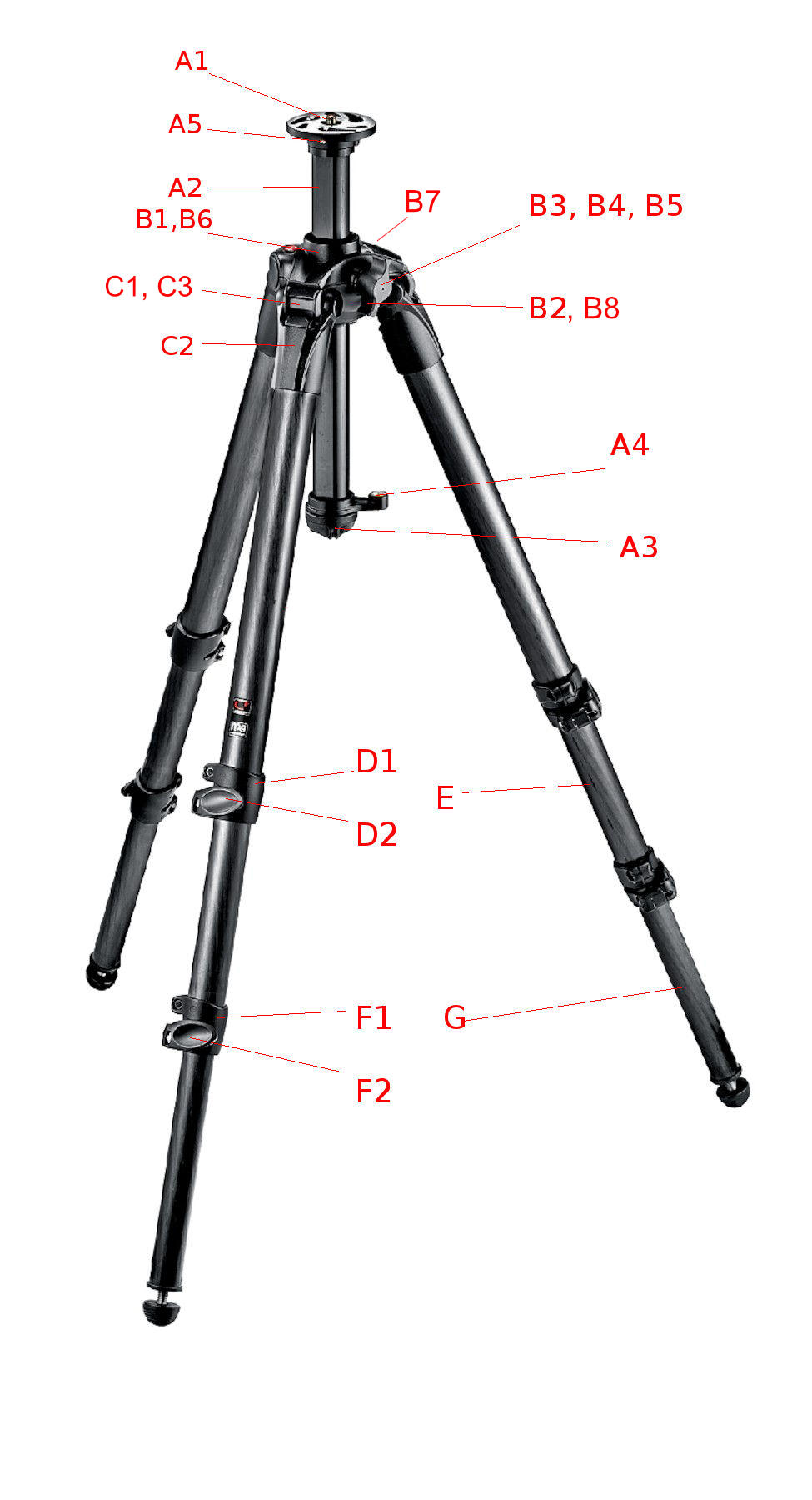

MANFROTTO CARBON FIBER MT057C3


A1 Center Column Top Plate
A2 Top Bezel Ring
A3 Center Column Plug
A4 Side Bubble Level-Single
A4 Side Bubble Level-10 pack
A5 Grub Screw

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)
B3 Center Column lock Screw (not a stock item)
B4 Center Column Bushing (not a stock item)
B5 Center Column Lock Shoe (not a stock item)

C1 Rubber Plug
C2 Upper Leg Tube (not a stock item)
C3 Leg Butterfly Bushing (not a stock item)

D1 Leg lock Assy
D2 Leg Lock Lever

E Middle Leg Tube

F1 Upper Leg Lock Assy

G Lower Leg Tube


H Leg Sleeves
(to be mounted on tubes)
I Leg Bushings
(to be mounted on locking collars)

J Cable Clip




Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
