MT190CXPRO3 - Carbon Fiber Tripod

Made after 2014-07-15

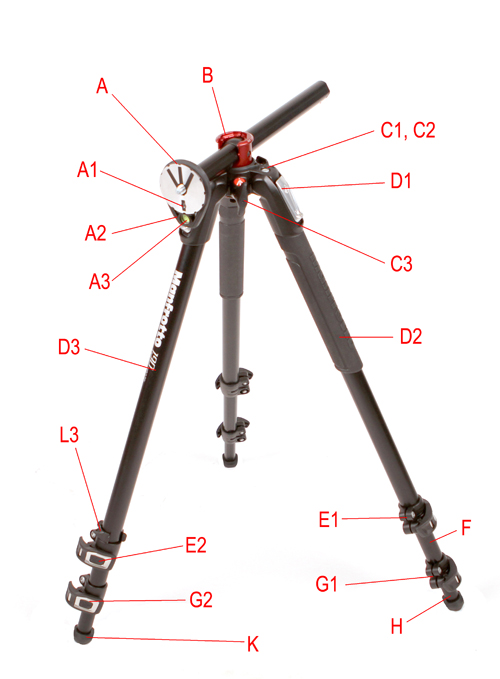

MT190XPRO3 TRIPOD Complete MT190CXPRO3 Tripod Assy

A Center Column Assy
A1 Grub Screw
A2 Top Bezel Ring & Bubble
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Plug

D1 Leg Pivot Release
D2 Tube Without Endgravings (not a stock item)
D3 Tube with Endgravings (not a stock item)

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button

F Upper Middle Leg Tube (not a stock item)

G1 Upper Leg Lock Assy
G2 Upper Snap Lever

H Lower Middle Leg Tube (not a stock item)

I is not a part
J is not a part

K Rubber Foot (set of 3)

L1 Leg Sleeves
L2 Leg Collars
L3 Cable Clip



Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
