MT190CXPRO4 - Carbon Fiber Tripod

Made after 2003-10-13


Mt190cxpro4 Manfrotto Tripod

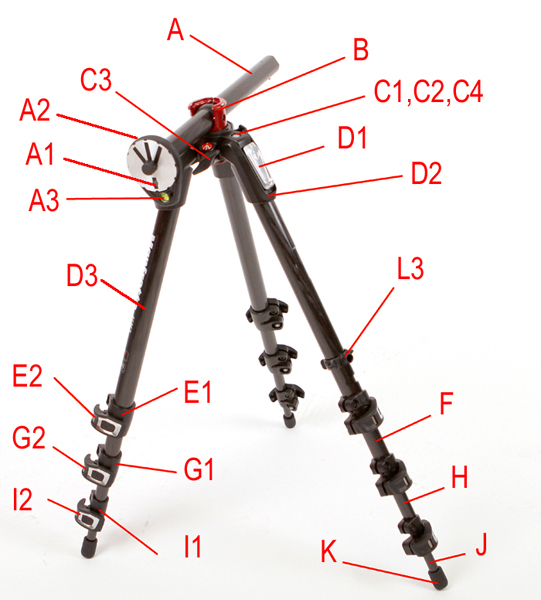

Manfrotto MT190CXPRO4 Tripod

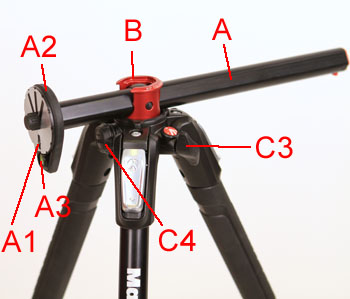

A Center Column Assy
A1 Grub Screw
A2 Top Bezel Ring & Bubble
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Cap
C5 Accessory Nut
C6 Main Casting Screws - 3 pack
C7 Torx Wrench
C8 Center Column Lock Shoe

D1 Leg Pivot Release
D2 Tube Without Endgravings (not a stock item)
D3 Tube with Endgravings (not a stock item)

E1 Upper Leg Clamp Assy
E2 Upper Snap Lever
E3 Clamp Screw
E4 T25 Wrench

F Upper Middle Leg Tube (not a stock item)

G1 Middle Leg Clamp Assy
G2 Middle Snap Lever
G3 Clamp Screw
G4 T25 Wrench

H Lower Middle Leg Tube (not a stock item)

I1 Lower Leg Clamp Assy
I2 Lower Snap Lock Lever
I3 Clamp Screw

J Lower Leg Tube 11.6mm(not a stock item)

K1 Rubber Feet -set of 3
K2 Spike Feet Accessory (set of 3)
K3 Suction Cup Feet Accessory (set of 3)

L1 Leg Sleeves
L2 Leg Collars
L3 Cable Clip

Editor note: Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the numbered link to see the actual part picture.
