MT190XPRO4 - Aluminum Tripod

Buy MT190XPRO4 Tripod


A Center Column Assy
A1 Grub Screw
A2 Top Bezel Ring & Bubble
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Cap
C5 Accessory Nut
C6 Main Casting Screws - 3 pack
C7 Torx Wrench
C8 Strap Loop
C9 Center Column Lock Shoe

D1 Leg Pivot Release
D2 Tube Without Endgravings
D3 Tube with Endgravings
D4 Rubber Grip

E1 Top Leg Clamp
E2 Top Snap Lever
E3 Clamp Screw
E4 T25 Wrench

F Upper Middle Leg Tube

G1 Upper Leg Clamp Assy
G2 Upper Snap Lever
G3 Clamp Screw
G4 T25 Wrench

H Lower Middle Leg Tube

I1 Lower Leg Clamp Assy
I2 Lower Snap Lock Lever
I3 Clamp Screw

J Lower Leg Tube

K Rubber Feet (set of 3)
K Rubber Foot (single)
K Suction Cup Feet (set of 3)
K Spike Feet (set of 3)
L Cable Clip

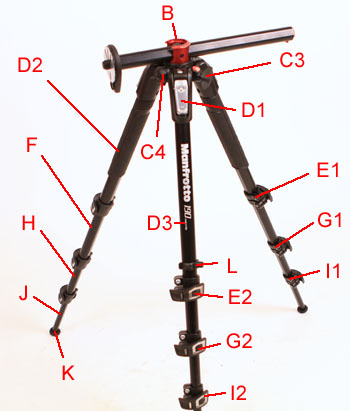

Editor note: Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the numbered link to see the actual part picture.
