MT290DUA3 (3 leg section) Aluminum Tripod

Made about 2011-08-05
For Serial Number A4776720

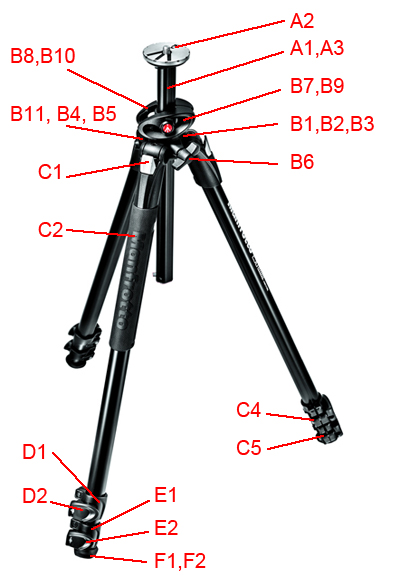

Manfrotto MT290DUA3 tripod parts A1 Center Column
A2 Grub Screw
A3 Center Column Plug

B1 Main Casting Top
B2 Main Casting Screws (sold indvidually)
B3 Main Casting Bottom
B4 Sliding Block
B5 Strap Loop
B6 Center Column Lock Knob
B7 Pro Feature Male Side
B8 PRO Featyure Female Side
B9 Rotation Collar
B10 Rotation Sling
B11 Friction Bearing

C1 Leg Extender Release Button
C2 Leg Pivot & Top Leg Tube w/o Engravings
C3 Leg Pivot & Top Tube with Engravings
(not a stock part)
C4 Middle Leg Tube (not a stock part)
C5 Bottom Leg Tube (not a stock part)
C6 Leg Cushions (set of 2)

D1 Upper Leg Clamp
D2 Upper Snap Lever

E1 Bottom Leg Clamp
E2 Bottom Snap Lever

F1 Rubber Feet (set of 3)
F2 Rubber Foot (individual)

G1 Cable Clip & Wrench
Editor note: Item numbers listed in the index on the right
column may not be shown on the picture because the part
may be obscured or is inside in underneath another part
and cannot be shown. Click on the link to see the actual
part picture. Links will turn red on "mouse-over' and blue
after they have been visited.
