MT290XTA3 (3 leg section) Aluminum Tripod

Made about 2011-08-05
For Serial Number A4776720

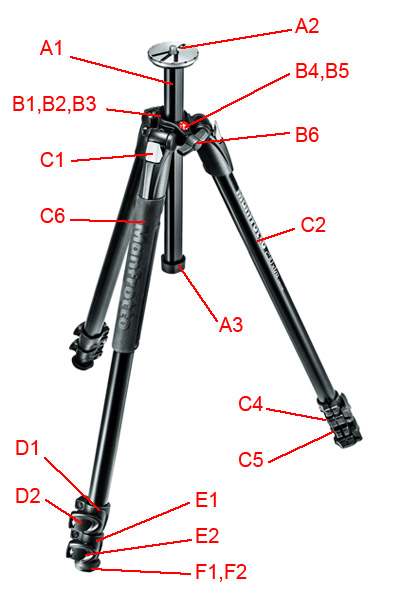

Manfrotto MT290XTA3 parts #6185 - A1 Center Column
#3099 - A2 Grub Screw
#4132 - A3 Center Column Plug

#6183 - B1 Main Casting Top
#6187 - B2 Main Casting Screws (sold indvidually)
#6184 - B3 Main Casting Bottom
#4403 - B4 Sliding Block
#4895 - B5 Strap Loop
#3808 - B6 Center Column Lock Knob

#3852 - C1 Leg Extender Release Button
#6186 - C2 Leg Pivot & Top Leg Tube w/o Engravings
C3 Upper Leg Tube (not a stock part)
#5325 - C4 Middle Leg Tube
#5324 - C5 Bottom Leg Tube
#5065 - C6 Leg Cushions (set of 2)

#4727 - D1 Upper Leg Clamp
#4726 - D2 Upper Snap Lever

#4725 - E1 Bottom Leg Clamp
#4724 - E2 Bottom Snap Lever

#3134 - F1 Rubber Foot (individual)
#5960 - F2 Rubber Feet (set of 3)

#3147 - G1 Cable Clip & Wrench
Editor note: Item numbers listed in the index on the right
column may not be shown on the picture because the part
may be obscured or is inside in underneath another part
and cannot be shown. Click on the link to see the actual
part picture. Links will turn red on "mouse-over' and blue
after they have been visited.
