MT293A3 (3 leg section) Aluminum Tripod

Made about 2013-03-19
For Serial Number A2614671

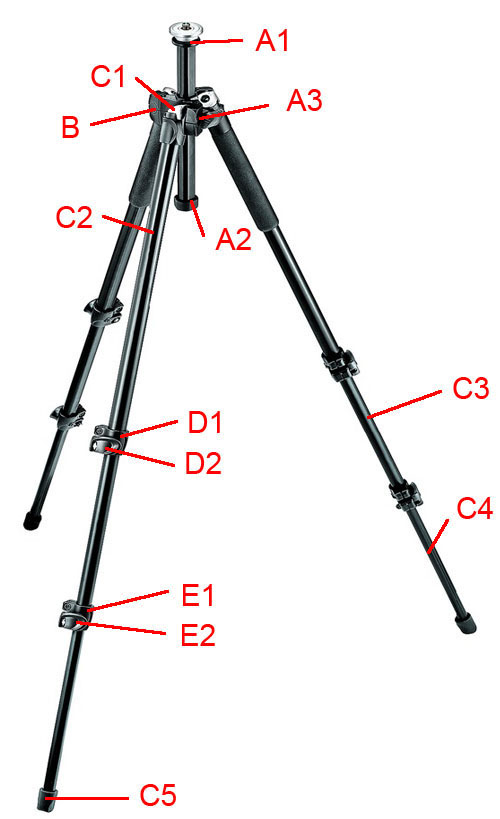

Manfrotto MT293a3 tripod A1 Center Column
A2 Center Column Plug (not a stock item)
A3 Center Column Lock Knob
A4 Sliding Block

B Main Casting

C Complete Leg Assy
C1 Leg Pivot Assembly
C2 Upper Leg Tube
C2 Upper Leg Tube w/ Rubber Grip
C3 Bottom Leg Tube
C4 Middle Leg Tube
C5 Rubber Feet (set of 3)

D1 Bottom Leg Clamp
D2 Bottom Snap Lever

E1 Bottom Leg Clamp
E2 Bottom Snap Lever

G Cable Clip & Wrench
Editor note: Many Parts are discontinued and not available. We will notify you if parts are unavailable or have to be substituted.

Item numbers listed in the index on the right column
may not be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown. Click
on the link to see the actual Part picture. Links will turn red on
"mouse-over' and blue after they have been visited.
