MT293A4 (4 leg section) Aluminum Tripod

Made about 2013-03-19
For Serial Number A2695143

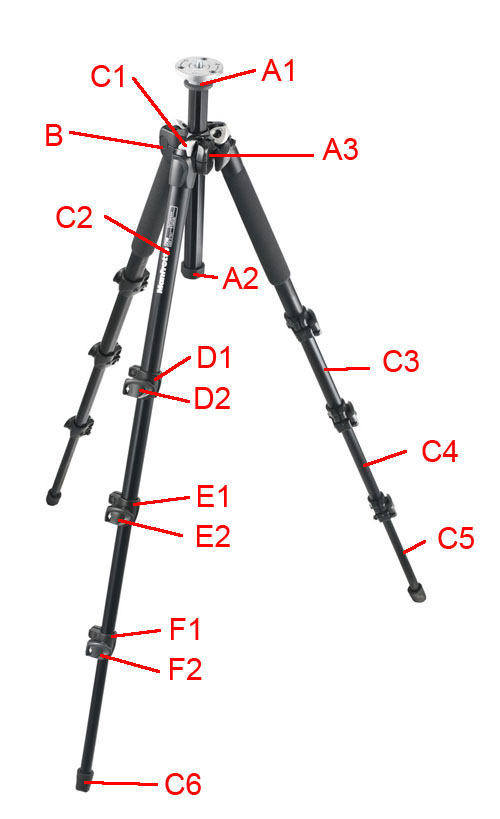

Manfrotto MT293A4 tripod A1 Center Column
A2 Center Column Plug
A3 Center Column Lock Knob
A4 Sliding Block

B1 Main Casting

C Complete Leg Assembly
C1 Leg Pivot
C2 Upper Leg Tube
C3 Middle Top Leg Tube
C4 Middle Bottom Leg Tube
C5 Bottom Leg Tube
C6 Rubber Feet (set of 3)

D1 Bottom Leg Clamp
D2 Bottom Snap Lever

E1 Bottom Leg Clamp
E2 Bottom Snap Lever

F1 Bottom Leg Clamp
F2 Bottom Snap Lever

G Cable Clip & Wrench
Editor note: There are two versions of this tripod, the parts are
interchangeable between both versions.

Item numbers listed in the index on the right column may not be
shown on the picture because the part may be obscured or is
inside in underneath another part and cannot be shown. Click
on the link to see the actual Part picture. Links will turn red on
"mouse-over' and blue after they have been visited.
