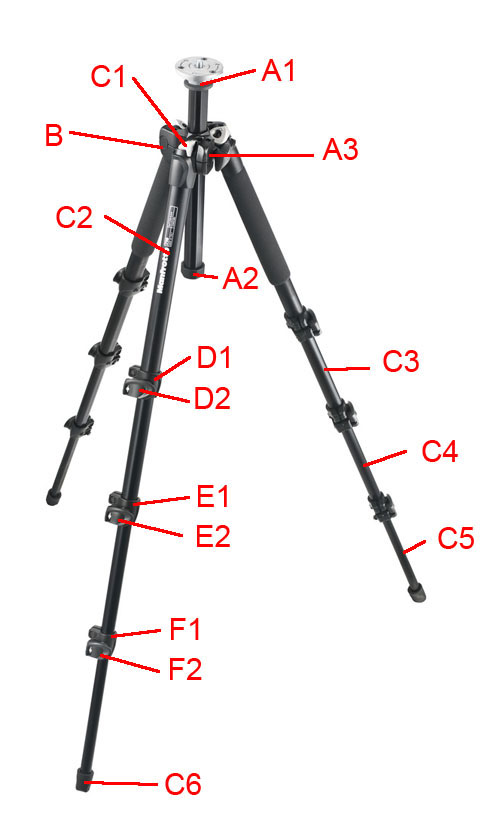

MT294A4 (4 leg section) Aluminum Tripod

Made about 2011-08-05
For Serial Number A2990368

A1 Center Column
A2 Center Column Plug
A3 Center Column Lock Knob
A4 Sliding Block

B Main Casting

C1 Leg Extender Release Button
C2 Leg Pivot & Top Leg Tube
C3 Upper Leg Tube
C4 Middle Leg Tube
C5 Bottom Leg Tube
C6 Rubber Feet (set of 3)

D1 Upper Leg Clamp
D2 Upper Snap Lever

E1 Middle Leg Clamp
E2 Middle Snap Lever

F1 Bottom Leg Clamp
F2 Bottom Snap Lever

G Cable Clip & Wrench
Editor note: Item numbers listed in the index on the right column
may not be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown. Click
on the link to see the actual Part picture. Links will turn red on
"mouse-over' and blue after they have been visited.
