MVK504HAQ Video Head & Tripod Kit
with Bowl Base

Made after 2014-07-08

Quick Release Plate for 504HD
504PLONG QUICK RELEASE PLATE


#4939 - A 504PLONG QR Plate Assy

#5174 - A1 Rubber Pads (set of 2)
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin

Quick Release Variations
#1374 - 500PLONG QR Plate
#1302 - 501PL QR Plate
#1468 - 501PLONG QR Plate
#3676 - 509PLONG QR Plate

Manfrotto 504HD Video Head


B1 Accessory Pin
#8118 - B2 QR Safety Lock
#8081 - B3 QR Receiver - Top Plate
#4690 - B4 QR Locking Shoe
#8116 - B5 QR Lock Knob

C1 Side Plate (left side)
#8149 - C2 Tension Knob

#4951 - D1 Pan Handle with Clamp
#8104 - D2 Pan Handle Locking Disk

#8117 - E1 Tilt Tension Locking Knob
E2 Knob Bezel
E3 Side Bezel (not a stock item)
E4 Right Side Plate (not a stock item)
E5 Pressure Rocker (not a stock item)
#8109 - E6 Tilt Lock Knob
E7 Fluid Disk (not a stock item)
E8 Tension Spring (not a stock item)

#8110 - F1 Pan Lock Knob (not shown)
F2 Pan Tension Knob(not a stock item)
F3 Main Casting (not a stock item)
#357 - F4 Pan Fluid Disk

#8103 - G1 Level Handle

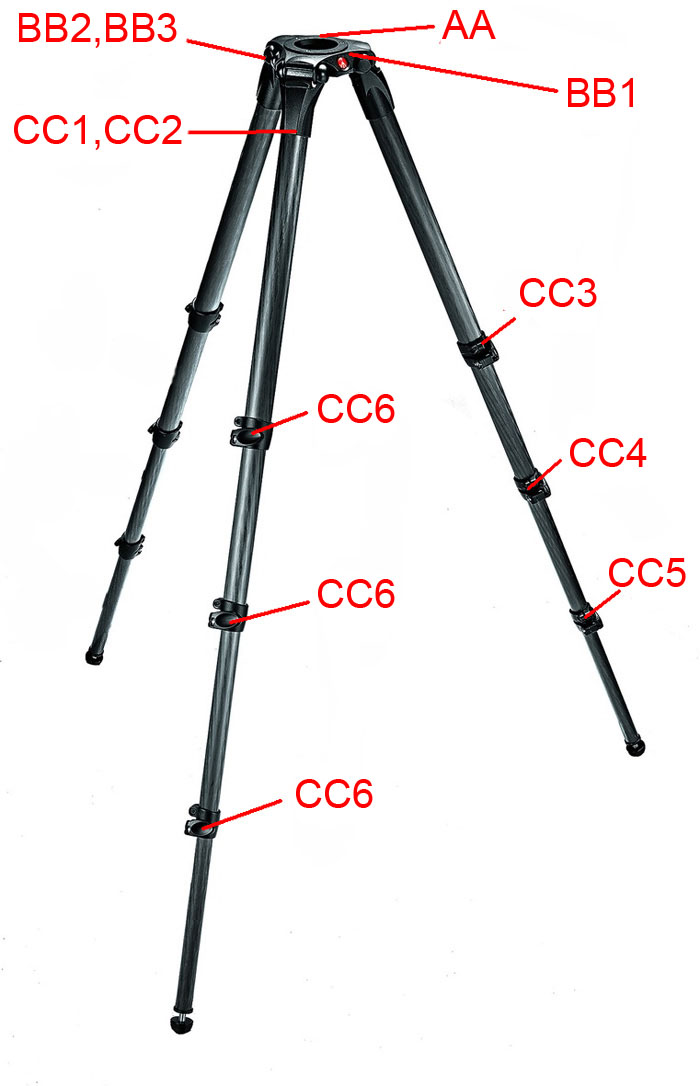

#8076 - AA Bowl Adapter (75mm to 60mm reducer)

#8088 - BB1 Main Casting
#8072 - BB2 Leg Release
#8073 - BB3 Leg Retainer

#8075 - CC1 Leg Assembly (no endgravings)
#8074 - CC2 Leg Assembly (with endgravings)
#2578 - CC3 Upper Leg Clamp
#2234 - CC4 Middle Leg Clamp
CC5 Bottom Leg Tube and Lock Assy
(not a stock item)
#1238 - CC6 Leg Lock Lever

The retractable rubber foot is not sold separately, it is only available as a part of the bottom leg assembly CC5 or the complete leg CC1, CC2

#929 - DD Cable Clip (not shown)
hhMANFROTTO MVT535AQ TRIPOD PARTS
Editor note: All parts are interchangeable

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
