MVT502AM VideoTripod

Made after 2011-11-18
For serial number from R0000001

MT502 video Tripod

Buy Complete MVT502am Tripod

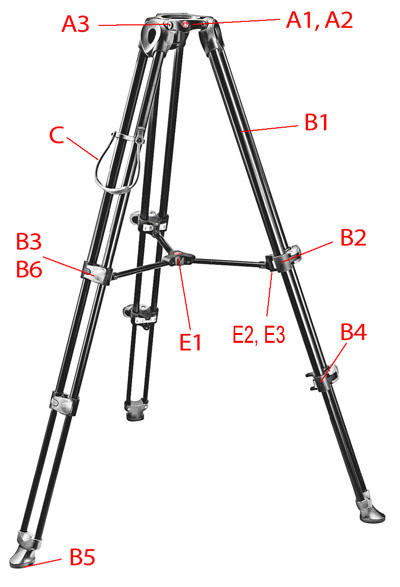

A1 75 to 60mm Bowl Reducer
A2 Main Casting
A3 Leg Axle Screws
sold one set per leg

B1 Leg Assembly
B2 Upper Leg Lock Assy
B3 Snap Lever For Upper & Lower - Single
B3 Snap Lever For Upper & Lower - 5 Pack
B4 Lower Leg Lock Assy
B5 Rubber Foot Bumber
(not a stock item)
B6 Leg Tub Shim Set
enough shims for one leg

C Strap Loop

D Leg Clips
not show on diagram

E1 Spreader Assy
E2 Spreader Pin

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
