MVT535AQ - Aluminum Video Tripod

Made after 2014-09-16
For Serial Number A4444945

536 carbon tripod

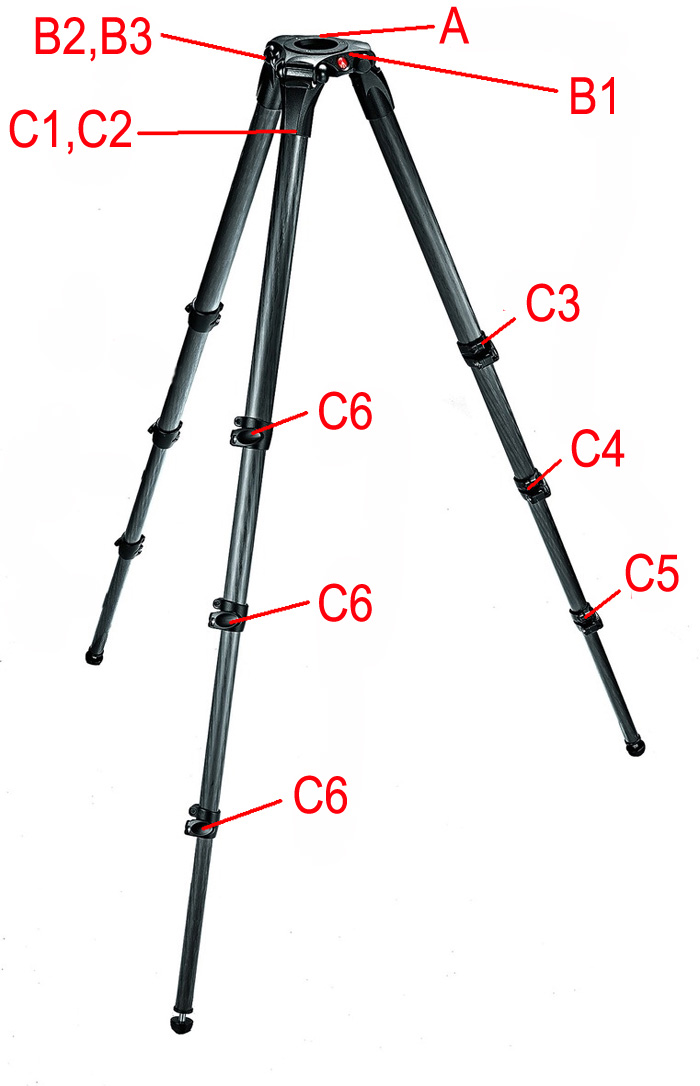

A Ball Adapter (75mm to 60mm)

B1 Main Casting
B2 Leg Release
B3 Leg Retainer

C1 Leg Assembly (no endgravings)
C2 Leg Assembly (with endgravings)
C3 Upper Leg Clamp
C4 Middle Leg Clamp
C5 Bottom Leg Tube and Lock Assy
(not a stock item)
C6 Leg Lock Lever

The retractable rubber foot is not sold separately, it is only available as a part of the bottom leg assembly C5 or the complete leg C1, C2

D Cable Clip (not shown)
Editor note: There are 3versions of this tripod is know.
All are similar enough and interchangeable that only one
is listed here.

Item numbers listed in the index on the right column may
not be shown on the picture because the part may be
obscured or is inside in underneath another part and
cannot be shown. Click on the link to see the actual part
picture. Links will turn red on "mouse-over' and blue after
they have been visited.
