501 VERSION 2 - Video Pan Head

Standard Quick Release Plate
A1 501PL Quick Release Plate
A2 501PL Rubber Pads (set of 2)
A3 1/4 QR Replacment Screw
A4 3/8 QR Replacement Screw
A5 Rubber Stopper
A6 Anti-Rotation Gold Pin
A6 Anti-Rotation Black Pin
Some Versions of 501PL use the Black Plastic Anti-Rotation Pin

Quick Release Variations
500PLONG QR Plate
501PL QR Plate
501PLONG QR Plate
509PLONG QR Plate

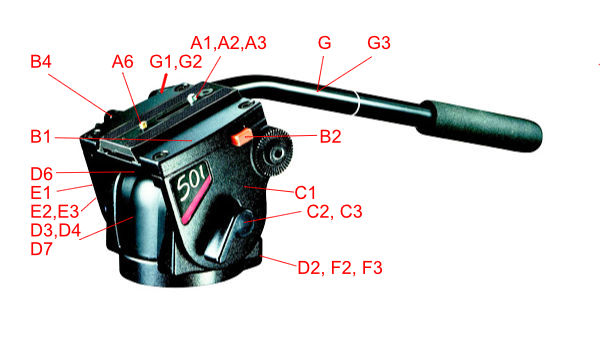

Head Parts
B1 Top Plate
B2 QR Safety Lock Button
B3 QR Lock Wedge
B4 QR Plate Lock Knob

C1 Side Plate (not a stock item)
C2 Tilt Lock Knob
C3 Tilt Friction Disk

D1 Main Housing (not a stock item)
D2 Bubble Level
D3 Main Bearing Stack (not a stock item)

D4 Main Pivot Spring (not a stock item)
D5 Main Baffle (not a stock item)
D6 Main Tension Knob
D7 Cover Plate (not a stock item)

E1 Side Plate Tension Side
E2 Tension Knob
E3 Side Friction Disk
F1 Base Plate (not a stock item)
F2 Pan Friction Disk
F3 Pan Lock Knob
F4 Pan Lock Assy

G Pan Handle Assembly
G1 Pan Handle Clamp Knob
G1a Clamp Knob Retaining Washer
G2 Pan Handle Clamp
G3 Pan Handle Only

H Fluid Grease Jar


Editor note: These pictures are for illustration Only. Click on the numbered link to see the actual part picture.
Parts from the 501 are NOT Compatible with the 501 Video Head

See 501
Manufacturers Parts List
