MT190GOA4 - Black Aluminum Tripod

Made after 2017-05-15
Fr all Serial Numbers

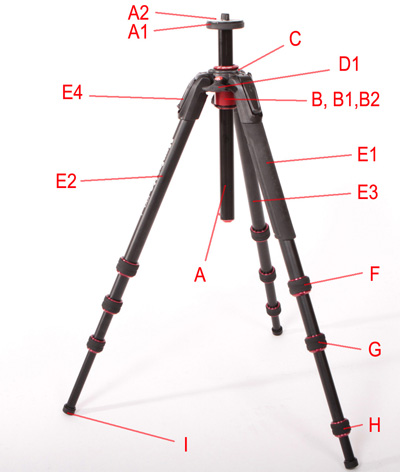

Manfrotto MT190GOA4 tripod

A Center Column Assy
A1 Rubber Bumper
A2 Grub Screw

B PRO Center Column Pivot Assy
B1 PRO Column Pivot Ring
B2 PRO Column Locking Ring
B3 PRO Column Locking Lever Block

C Main Casting Top Plate
C1 Top Plate Screws & Nuts - set of 3

D Main Casting Bottom Plate
D1 Center Column Lock Knob
D2 Rubber Cap
D3 Accessory Nut
D4 Main Casting Screws - 3 pack

D5 Torx Wrench
D6 Strap Loop
D7 Center Column Lock Shoe
D8 Center Column Lock Shoe

E1 Leg Assy & Brace With Rubber Grip
E2 Leg Assy & Brace With Endgravings (not a stock part)
E3 Leg Assy & Brace Only (no rubber grip)
E4 Upper Leg Friction Bearing - set of 3
E5 Upper Leg Clamping Collar - single
E5 Upper Leg Clamping Collar - set of 3
E6 Leg Extender Release Button

F Upper Middle Leg Tube
F1 Upper Middle Leg Friction Bearing - set of 3
F2 Upper Middle Leg Clamping Collar - single
F Upper MiddleLeg Clamping Collar - set of 3

G Lower Middle Leg Tube
G1 Lower Middle Leg Friction Bearing - set of 3
G2 Lower Middle Leg Clamping Collar - single
G2 Lower Middle Leg Clamping Collar - set of 3

H Lower Leg Tube

I Rubber Foot - individual
I Rubber Feet - set of 3

J T25 Torx Wrench
Editor note: These parts are not interchangeable with all versions of the MT190GO tripods. These leg tubes are D shapded and not Compatible with the earlier round tube versions. These twist locks are the New M-Series locks. Click on the numbered link to see the actual part picture.
