MT190GOC4 - Black Carbon Tripod

Made after 2017-07-14
From serial number from A0000

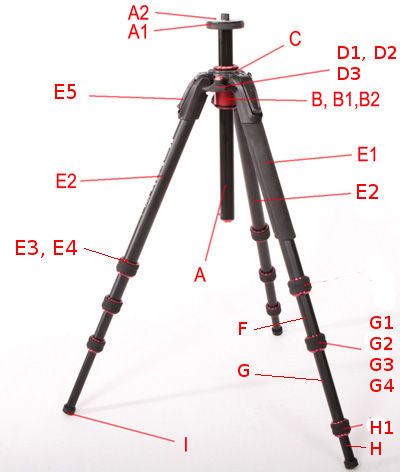

Manfrotto MT190GOC4 tripod

A Center Column Assy
A1 Rubber Bumper
A2 Grub Screw

B PRO Center Column Pivot Assy
B1 PRO Column Pivot Ring
B2 PRO Column Locking Ring
B3 PRO Column Locking Lever Block

C Main Casting Top Plate
C1 Top Plate Screws & Nuts - set of 3

D Main Casting Bottom Plate
D1 Center Column Lock Knob
D2 Rubber Cap
D3 Accessory Nut
D4 Main Casting Screws - 3 pack
D5 Torx Wrench
D6 Strap Loop
D7 Center Column Lock Shoe

E1 Upper Leg Tube & Brace With Endgravings (not a stock part)
E2 Upper Leg Tube & Brace Assy
E3 Upper Leg Friction Bearing - set of 3
E4 Upper Leg Clamping Collar - single
E4 Upper Leg Clamping Collar - set of 3
E5 Leg Extender Release Button

F Upper Middle Leg Tube
F1 Upper Middle Leg Friction Bearing - set of 3
F2 Upper Middle Leg Clamping Collar - single
F2 Upper MiddleLeg Clamping Collar - set of 3
F3 Upper Leg Tube Bushing

G Lower Middle Leg Tube
G1 Lower Middle Leg Friction Bearing - set of 3
G2 Lower Middle Leg Clamping Collar - single
G2 Lower Middle Leg Clamping Collar - set of 3
G3 Lower Middle Leg Tube Bushing

H Lower Leg Tube
H1 Lower Leg Tube Bushing

I Rubber Feet - set of 3


J T25 Torx Wrench

Editor note: These parts are not interchangeable with all versions of the MT190GO tripods. Click on the numbered link to see the actual part picture. The Leg tube on this version are D shaped and not interchangeable with thr MT190GOC4TB.
